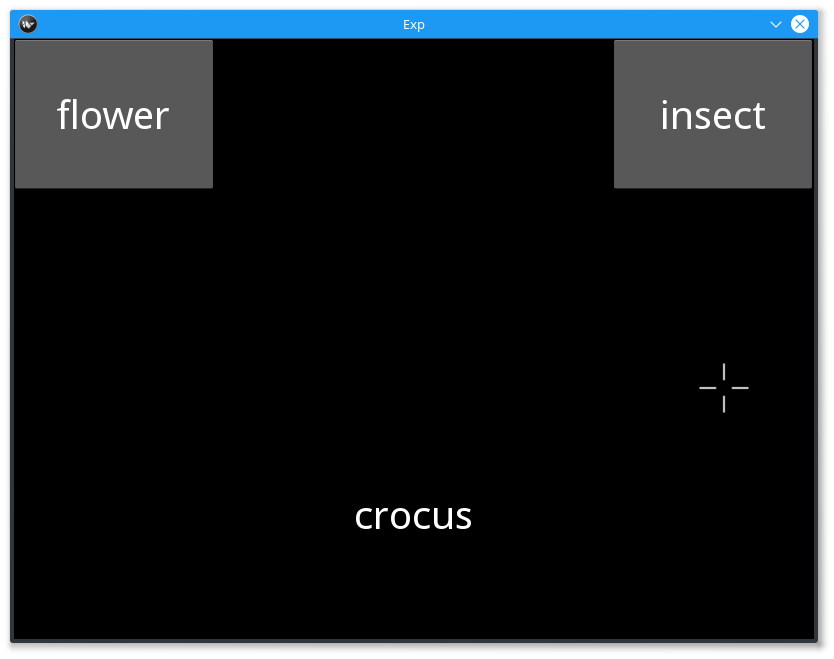

IAT Mouse Tracking

../../_images/iat_mouse.png

The IAT, or Implicit-Association Test, was introduced by Anthony Greenwald et al. in 1998. This task is designed to get at the individual differences in our implicit associations with different concepts that make up our lives. The basic IAT requires the participant to rapidly categorize two target concepts with an attribute, such that the response times will be faster with strongly associated pairings and slower for weakly associated pairings. The key here is that the participant should act as quickly as they can so this experiment can better get at the implicit associations rather than the surface level associations.

The study that we are showing off in smile (Yu, Wang, Wang et al. 2012) designed an IAT that incorporated mouse tracking into their study to better get at the underlying mechanisms of implicit-association. We ask our participants to view names of flowers, names of bugs, positively associated nouns, and negatively associated nouns and to classify them into categories. The blocks of stimuli will be better explained below in the Stimulus Generation section of this document.

This SMILE experiment will utilize many of the Mouse Classes in mouse.py, including MouseCursor and MouseRecord. We will also be using many of the SMILE flow states like Loop and Meanwhile and If. Along with the use of Mouse states, we will be using ButtonPress as our main form of input for the experiment.

The Experiment

When writing any experiment in smile, it is usually best to split it over multiple files so that you can better organize your experiment. In this example, we split our experiment into 3 different files, gen_stim.py, config.py, and iat_mouse.py.

In iat_mouse.py we have the imports that we need for the experiment. Below are those imports.

1
2
3
from smile.common import *
from config import *
from gen_stim import *

Our experiment first imports smile.commmon, where all of the most used states are imported from, as well as config and gen_stim. Let’s take a look into config, where we set and define our global variables for the experiment.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
#RST VARIABLES
RSTFONTSIZE = 50
RSTWIDTH = 600
instruct1 = open('iat_mouse_instructions1.rst', 'r').read()
instruct2 = open('iat_mouse_instructions2.rst', 'r').read()
instruct3 = open('iat_mouse_instructions3.rst', 'r').read()
instruct4 = open('iat_mouse_instructions4.rst', 'r').read()
instruct5 = open('iat_mouse_instructions5.rst', 'r').read()
instruct6 = open('iat_mouse_instructions6.rst', 'r').read()
instruct7 = open('iat_mouse_instructions7.rst', 'r').read()

#MOUSE MOVING VARIABLES
WARNINGDURATION = 2.0
MOUSEMOVERADIUS = 100
MOUSEMOVEINTERVAL = 0.400

#BUTTON VARIABLES
BUTTONHEIGHT = 150
BUTTONWIDTH = 200

#GENERAL VARIABLES
FONTSIZE = 40
INTERTRIALINTERVAL = 0.750

After defining our global variables, we should define our stimulus generator. In gen_stim.py we define a function that generates lists of dictionaries that represent out blocks of trials. The following is our gen_stim.py, where we first set up our lists of stimuli to be pulled from.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
import random as rm
from config import instruct1,instruct2,instruct3,instruct4,instruct5,instruct6,instruct7

# WORDLISTS FROM Greenwald et al. 1998
filenameI = "pools/insects.txt"
filenameF = "pools/flowers.txt"
filenameP = "pools/positives.txt"
filenameN = "pools/negatives.txt"

I = open(filenameI)
F = open(filenameF)
P = open(filenameP)
N = open(filenameN)

stimListI = I.read().split('\n')
stimListF = F.read().split('\n')
stimListP = P.read().split('\n')
stimListN = N.read().split('\n')

#pop off the trailing line
stimListI.pop(len(stimListI)-1)
stimListF.pop(len(stimListF)-1)
stimListP.pop(len(stimListP)-1)
stimListN.pop(len(stimListN)-1)

Next we define our gen_blocks() function. At the bottom of gen_stim.py we also call gen_blocks() so our iat_mouse.py doesn’t have to.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
def gen_blocks(type):

    sampI = rm.sample(stimListI, 10)
    sampF = rm.sample(stimListF, 10)
    sampP = rm.sample(stimListP, 10)
    sampN = rm.sample(stimListN, 10)

    #Generate the blocks
    list1 = {"left_word":"flower", "right_word":"insect", "instruct":instruct1,
             "words":([{"correct":"right", "center_word":I} for I in sampI] +
                      [{"correct":"left", "center_word":F} for F in sampF])}

    list2 = {"left_word":"positive", "right_word":"negative", "instruct":instruct2,
             "words":([{"correct":"left", "center_word":P} for P in sampP] +
                      [{"correct":"right", "center_word":N} for N in sampN])}

    list3 = {"left_word":"flower positive", "right_word":"insect negative", "instruct":instruct3,
             "words":([{"correct":"right", "center_word":I} for I in rm.sample(sampI[:], 5)] +
                      [{"correct":"left", "center_word":F} for F in rm.sample(sampF[:], 5)] +
                      [{"correct":"left", "center_word":P} for P in rm.sample(sampP[:], 5)] +
                      [{"correct":"right", "center_word":N} for N in rm.sample(sampN[:], 5)])}

    list4 = {"left_word":"flower positive", "right_word":"insect negative", "instruct":instruct4,
             "words":([{"correct":"right", "center_word":I} for I in sampI] +
                      [{"correct":"left", "center_word":F} for F in sampF] +
                      [{"correct":"left", "center_word":P} for P in sampP] +
                      [{"correct":"right", "center_word":N} for N in sampN])}

    list5 = {"left_word":"insect", "right_word":"flower", "instruct":instruct5,
             "words":[{"correct":"left", "center_word":I} for I in sampI] + [{"correct":"right", "center_word":F} for F in sampF]}

    list6 = {"left_word":"insect positive", "right_word":"flower negative", "instruct":instruct6,
             "words":([{"correct":"left", "center_word":I} for I in rm.sample(sampI[:], 5)] +
                      [{"correct":"right", "center_word":F} for F in rm.sample(sampF[:], 5)] +
                      [{"correct":"left", "center_word":P} for P in rm.sample(sampP[:], 5)] +
                      [{"correct":"right", "center_word":N} for N in rm.sample(sampN[:], 5)])}

    list7 = {"left_word":"insect positive", "right_word":"flower negative", "instruct":instruct7,
             "words":([{"correct":"left", "center_word":I} for I in sampI] +
                      [{"correct":"right", "center_word":F} for F in sampF] +
                      [{"correct":"left", "center_word":P} for P in sampP] +
                      [{"correct":"right", "center_word":N} for N in sampN])}
    rm.shuffle(list1['words'])
    rm.shuffle(list2['words'])
    rm.shuffle(list3['words'])
    rm.shuffle(list4['words'])
    rm.shuffle(list5['words'])
    rm.shuffle(list6['words'])
    rm.shuffle(list7['words'])

    #If type 1, then do critical compatible lists
    if type == 1:
        return [list1, list2, list3, list4, list5, list6, list7]
    #if type 2, then do critical incompatible lists
    else:
        return [list5, list2, list6, list7, list1, list3, list4]
#GenBlocks
BLOCKS = gen_blocks(1)

Now we can look at the rest of iat_mouse.py. The following is the setup of the block loop and the setup of the trial loop. At the beginning of each loop, you will see a new instructions page and will not be able to go on with the experiment until you press a key. The block loop will loop over the BLOCKS that were defined in gen_stim.py, whereas the trial loop will loop over the words key that is attached to each block’s dictionary.

#Set up the Block loop, where *block* is a
#Reference to the variable you are looping over
with Loop(BLOCKS) as block:
    #Show the instructions to the participant
    RstDocument(text=block.current['instruct'], base_font_size=RSTFONTSIZE, width=RSTWIDTH, height=exp.screen.height)
    with UntilDone():
        #When a KeyPress is detected, the UntilDone
        #will cancel the RstDocument state
        KeyPress()
    #Setup a loop over each Trial in a Block. *block.current* references the
    #current iteration of the loop, which is a dictionary that contains the list
    #words. *trial* will be our reference to the current word in our loop.
    with Loop(block.current['words']) as trial:

The core of this experiment is the trial level loop. Below is the code that defines the states that run each and every trial for the participant. This is the section of code that defines the button press, the things that happen while the buttons are waiting to be pressed, and the Log the logs out the information from each trial. It also sets up the MouseRecord that tracks the mouse positions that need to be analyzed for this experiment.

        #initialize our testing variable in Experiment Runtime
        #exp.something = something will create a Set state
        exp.mouse_test = False
        #The following is a ButtonPress state. This state works like KeyPress,
        #but instead waits for any of the buttons that are its children to be
        #pressed.
        with ButtonPress(correct_resp=trial.current['correct']) as bp:
            #block.current is a dictionary that has all of the information we
            #would need during each individual block, including the text that is
            #in these buttons, which differs from block to block
            Button(text=block.current['left_word'], name="left", left=0,
                   top=exp.screen.top, width = BUTTONWIDTH, height=BUTTONHEIGHT, text_size = (170, None),
                   font_size=FONTSIZE, halign='center')
            Button(text=block.current['right_word'], name="right",
                   right=exp.screen.right, top=exp.screen.top,
                   width = BUTTONWIDTH, height = BUTTONHEIGHT, text_size = (170, None),
                   font_size=FONTSIZE, halign='center')
            #Required to see the mouse on the screen!
            MouseCursor()
        #while those buttons are waiting to be pressed, go ahead and do the
        #children of this next state, the Meanwhile
        with Meanwhile():
            #The start button that is required to be pressed before the trial
            #word is seen.
            with ButtonPress():
                Button(text="Start", bottom=exp.screen.bottom, font_size=FONTSIZE)
            #Do all of the children of a Parallel at the same time.
            with Parallel():
                #display target word
                target_lb = Label(text=trial.current['center_word'], font_size=FONTSIZE, bottom=exp.screen.bottom+100)
                #Record the movements of the mouse
                MouseRecord(name="MouseMovements")
                #Setup an invisible rectangle that is used to detect exactly
                #when the mouse starts to head toward an answer.
                rtgl = Rectangle(center=MousePos(), width=MOUSEMOVERADIUS,
                                 height=MOUSEMOVERADIUS, color=(0,0,0,0))
                with Serial():
                    #wait until the mouse leaves the rectangle from above
                    wt = Wait(until=(MouseWithin(rtgl) == False))
                    #If they waited too long to start moving, tell the experiment
                    #to display a warning message to the participant
                    with If(wt.event_time['time'] - wt.start_time > MOUSEMOVEINTERVAL):
                        exp.mouse_test = True
        with If(exp.mouse_test):
            Label(text="You are taking too long to move, Please speed up!",
                  font_size=FONTSIZE, color="RED", duration=WARNINGDURATION)
        #wait for the interstimulus interval
        Wait(INTERTRIALINTERVAL)
        #WRITE THE LOGS
        Log(name="IAT_MOUSE",
            left=block.current['left_word'],
            right=block.current['right_word'],
            word=trial.current,
            correct=bp.correct,
            reaction_time=bp.press_time['time']-target_lb.appear_time['time'],
            slow_to_react=exp.mouse_test)
#This starts the experiment
exp.run()

Analysis

When coding your experiment, you don’t have to worry about losing any data because all of it is saved out into .slog files anyway. The thing you do have to worry about is whether or not you want that data easily available or if you want to spend hours slogging through your data. We made it easy for you to pick which data you want saved out during the running of your experiment with use of the Log state.

Relevant data from the IAT MOUSE TRACKING task would be the responses from the ButtonPress and the mouse movements that are saved in the .slog files.

If you would like to grab your data from the .slog files to analyze your data in python, you need to use the log2dl(). This function will read in all of the .slog files with the same base name, and convert them into one long list of dictionaries. Below is a the few lines of code you would use to get at all of the data from three imaginary participants, named as s000, s001, and s002.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
from smile.log as lg
#define subject pool
subjects = ["s000/","s001/","s002/"]
dic_list = []
mouse_list = []
for sbj in subjects:
    #get at all the different subjects
    dic_list.append(lg.log2dl(log_filename="data/" + sbj + "Log_IAT_MOUSE"))
    mouse_list.append(lg.log2dl(log_filename="data/" + sbj + "record_MouseMovements"))
#print out all of the study times in the first study block for
#participant one, block one
print dic_list[0]['reaction_time']

You can also translate all of the .slog files into .csv files easily by running the command log2csv() for each participant. An example of this is located below.

1
2
3
4
5
6
7
from smile.log as lg
#define subject pool
subjects = ["s000/","s001/","s002/"]
for sbj in subjects:
    #Get at all the subjects data, naming the csv appropriately.
    lg.log2csv(log_filename="data/" + sbj + "Log_IAT_MOUSE", csv_filename=sbj + "_IAT_MOUSE")
    lg.log2csv(log_filename="data/" + sbj + "record_MouseMovements", csv_filename=sbj + "_IAT_MOUSE_MOVEMENTS")

iat_mouse.py in full

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
from smile.common import *
from config import *
from gen_stim import *

#Start setting up the experiment
exp = Experiment()

#Show the instructions to the participant
RstDocument(text=instruct_text, base_font_size=RSTFONTSIZE, width=RSTWIDTH, height=exp.screen.height)
with UntilDone():
    #When a KeyPress is detected, the UntilDone
    #will cancel the RstDocument state
    KeyPress()
#Setup the Block loop, where *block* is a
#Reference to the variable you are looping over
with Loop(BLOCKS) as block:
    #Setup a loop over each Trial in a Block. *block.current* references the
    #current iteration of the loop, which is a dictionary that contains the list
    #words. *trial* will be our reference to the current word in our loop.
    with Loop(block.current['words']) as trial:
        #initialize our testing variable in Experiment Runtime
        #exp.something = something will create a Set state
        exp.mouse_test = False
        #The following is a ButtonPress state. This state works like KeyPress,
        #but instead waits for any of the buttons that are its children to be
        #press.
        with ButtonPress(correct_resp=trial.current['correct']) as bp:
            #block.current is a dictionary that has all of the information we
            #would need during each individual block, including the text that is
            #in these buttons, which differs from block to block
            Button(text=block.current['left_word'], name="left", left=0,
                   top=exp.screen.top, width = BUTTONWIDTH, height=BUTTONHEIGHT, text_size = (170, None),
                   font_size=FONTSIZE, halign='center')
            Button(text=block.current['right_word'], name="right",
                   right=exp.screen.right, top=exp.screen.top,
                   width = BUTTONWIDTH, height = BUTTONHEIGHT, text_size = (170, None),
                   font_size=FONTSIZE, halign='center')
            #Required to see the mouse on the screen!
            MouseCursor()
        #while those buttons are waiting to be pressed, go ahead and do the
        #children of this next state, the Meanwhile
        with Meanwhile():
            #The start button that is required to be pressed before the trial
            #word is seen.
            with ButtonPress():
                Button(text="Start", bottom=exp.screen.bottom, font_size=FONTSIZE)
            #Do all of the children of a Parallel at the same time.
            with Parallel():
                #display target word
                target_lb = Label(text=trial.current['center_word'], font_size=FONTSIZE, bottom=exp.screen.bottom+100)
                #Record the movements of the mouse
                MouseRecord(name="MouseMovements")
                #Setup an invisible rectangle that is used to detect exactly
                #when the mouse starts to head toward an answer.
                rtgl = Rectangle(center=MousePos(), width=MOUSEMOVERADIUS,
                                 height=MOUSEMOVERADIUS, color=(0,0,0,0))
                with Serial():
                    #wait until the mouse leaves the rectangle from above
                    wt = Wait(until=(MouseWithin(rtgl) == False))
                    #If they waited too long to start moving, tell the experiment
                    #to display a warning message to the participant
                    with If(wt.event_time['time'] - wt.start_time > MOUSEMOVEINTERVAL):
                        exp.mouse_test = True
        with If(exp.mouse_test):
            Label(text="You are taking too long to move, Please speed up!",
                  font_size=FONTSIZE, color="RED", duration=WARNINGDURATION)
        #wait the interstimulus interval
        Wait(INTERTRIALINTERVAL)
        #WRITE THE LOGS
        Log(name="IAT_MOUSE",
            left=block.current['left_word'],
            right=block.current['right_word'],
            word=trial.current,
            correct=bp.correct,
            reaction_time=bp.press_time['time']-target_lb.appear_time['time'],
            slow_to_react=exp.mouse_test)
#the line required to run your experiment after all
#of it is defined above
exp.run()

config.py in Full

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
#RST VARIABLES
RSTFONTSIZE = 50
RSTWIDTH = 600
instruct1 = open('iatmouse_instructions1.rst', 'r').read()
instruct2 = open('iatmouse_instructions2.rst', 'r').read()
instruct3 = open('iatmouse_instructions3.rst', 'r').read()
instruct4 = open('iatmouse_instructions4.rst', 'r').read()
instruct5 = open('iatmouse_instructions5.rst', 'r').read()
instruct6 = open('iatmouse_instructions6.rst', 'r').read()
instruct7 = open('iatmouse_instructions7.rst', 'r').read()

#MOUSE MOVING VARIABLES
WARNINGDURATION = 2.0
MOUSEMOVERADIUS = 100
MOUSEMOVEINTERVAL = 0.400

#BUTTON VARIABLES
BUTTONHEIGHT = 150
BUTTONWIDTH = 200

#GENERAL VARIABLES
FONTSIZE = 40
INTERTRIALINTERVAL = 0.750

gen_stim.py in Full

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
import random as rm
from config import instruct1,instruct2,instruct3,instruct4,instruct5,instruct6,instruct7

# WORDLISTS FROM Greenwald et al. 1998
filenameI = "pools/insects.txt"
filenameF = "pools/flowers.txt"
filenameP = "pools/positives.txt"
filenameN = "pools/negatives.txt"

I = open(filenameI)
F = open(filenameF)
P = open(filenameP)
N = open(filenameN)

stimListI = I.read().split('\n')
stimListF = F.read().split('\n')
stimListP = P.read().split('\n')
stimListN = N.read().split('\n')

#pop off the trailing line
stimListI.pop(len(stimListI)-1)
stimListF.pop(len(stimListF)-1)
stimListP.pop(len(stimListP)-1)
stimListN.pop(len(stimListN)-1)

def gen_blocks(type):

    sampI = rm.sample(stimListI, 10)
    sampF = rm.sample(stimListF, 10)
    sampP = rm.sample(stimListP, 10)
    sampN = rm.sample(stimListN, 10)

    #Generate the blocks
    list1 = {"left_word":"flower", "right_word":"insect", "instruct":instruct1,
             "words":([{"correct":"right", "center_word":I} for I in sampI] +
                      [{"correct":"left", "center_word":F} for F in sampF])}

    list2 = {"left_word":"positive", "right_word":"negative", "instruct":instruct2,
             "words":([{"correct":"left", "center_word":P} for P in sampP] +
                      [{"correct":"right", "center_word":N} for N in sampN])}

    list3 = {"left_word":"flower positive", "right_word":"insect negative", "instruct":instruct3,
             "words":([{"correct":"right", "center_word":I} for I in rm.sample(sampI[:], 5)] +
                      [{"correct":"left", "center_word":F} for F in rm.sample(sampF[:], 5)] +
                      [{"correct":"left", "center_word":P} for P in rm.sample(sampP[:], 5)] +
                      [{"correct":"right", "center_word":N} for N in rm.sample(sampN[:], 5)])}

    list4 = {"left_word":"flower positive", "right_word":"insect negative", "instruct":instruct4,
             "words":([{"correct":"right", "center_word":I} for I in sampI] +
                      [{"correct":"left", "center_word":F} for F in sampF] +
                      [{"correct":"left", "center_word":P} for P in sampP] +
                      [{"correct":"right", "center_word":N} for N in sampN])}

    list5 = {"left_word":"insect", "right_word":"flower", "instruct":instruct5,
             "words":[{"correct":"left", "center_word":I} for I in sampI] + [{"correct":"right", "center_word":F} for F in sampF]}

    list6 = {"left_word":"insect positive", "right_word":"flower negative", "instruct":instruct6,
             "words":([{"correct":"left", "center_word":I} for I in rm.sample(sampI[:], 5)] +
                      [{"correct":"right", "center_word":F} for F in rm.sample(sampF[:], 5)] +
                      [{"correct":"left", "center_word":P} for P in rm.sample(sampP[:], 5)] +
                      [{"correct":"right", "center_word":N} for N in rm.sample(sampN[:], 5)])}

    list7 = {"left_word":"insect positive", "right_word":"flower negative", "instruct":instruct7,
             "words":([{"correct":"left", "center_word":I} for I in sampI] +
                      [{"correct":"right", "center_word":F} for F in sampF] +
                      [{"correct":"left", "center_word":P} for P in sampP] +
                      [{"correct":"right", "center_word":N} for N in sampN])}
    rm.shuffle(list1['words'])
    rm.shuffle(list2['words'])
    rm.shuffle(list3['words'])
    rm.shuffle(list4['words'])
    rm.shuffle(list5['words'])
    rm.shuffle(list6['words'])
    rm.shuffle(list7['words'])

    #If type 1, then do critical compatible lists
    if type == 1:
        return [list1, list2, list3, list4, list5, list6, list7]
    #if type 2, then do critical incompatible lists
    else:
        return [list5, list2, list6, list7, list1, list3, list4]
#GenBlocks
BLOCKS = gen_blocks(1)

CITATION

Greenwald, Anthony G.; McGhee, Debbie E.; Schwartz, Jordan L.K. (1998), "Measuring Individual Differences in Implicit Cognition: The Implicit Association Test", Journal of Personality and Social Psychology 74 (6): 1464–1480

Yu, Wang, Wang (2012), "Beyond Reaction Times: Incorporating Mouse-Tracking Measures into the Implicit Association Test to Examine its Underlying Process", Social Cognition 30 (3): 289-306
